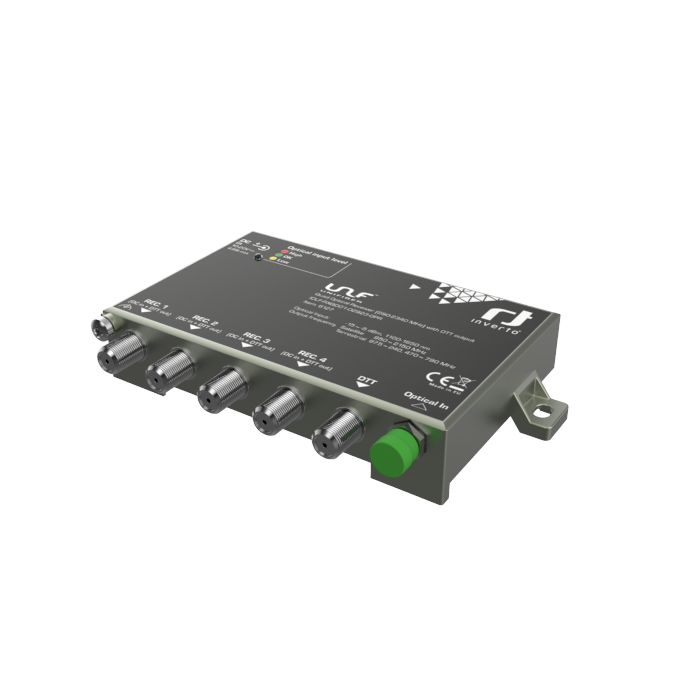

The Unifiber™ Quad optical receiver connects to an Inverto's Unifiber™ optical transmitter over a fiber passive-optical-network to receive satellite and terrestrial signals combined over a single fiber cable. A status LED helps installers to validate the power of the optical signal and guarantee the quality of the RF signals at the outputs of the receiver. This Quad receiver features four satellite universal ports (each with combined DTT signal) and an independent DTT port supporting all FM, DAB and DTT broadcasts. The receiver can be powered via the STBs that are connected to the satellite output ports or through an external power supply via the DC in port. Its power saving mode when universal ports are inactive and its compact housing makes it ideal for indoor fiber-to-the-home installations.
Main Features:
Main Features:
- Optical Quad receiver with independent Wideband and DAB/DTT outputs (UK version)
- Built-in high dynamic range optical AGC (-15~-5dBm) increasing signal quality
- 4 independent Universal ports with combined DTT signal and power saving mode
- Optical wavelength 1100-1650 nm, compatible with Inverto's Unifiber™ transmitters
- Quick and easy install, powered from external power supply or satellite ports
- Compact, robust die-cast housing, for indoor installations (IP54)
| Technical specifications | |
|---|---|
| Optical input |
|
| Wavelength |
1100 ~ 1650 nm |
| Optical input level (with AGC) | -15 ~ -5 dBm |
| Optical port | 1, FC/UPC |
|
|
|
|
|
|
| Satellite Universal output ports | 4x, with combined DTT; F-type |
| Output frequency range | 950 ~ 2150 MHz |
| Output power level | -33 dBm (75dBuV) |
| Output level variation | 4 dB max. |
| Control signals (Vertical/Horizontal, Low/High band) |
13/18 VDC, 0/22kHz |
| Power supply | 10 - 20 VDC |
| Current consumprion per port |
60 mA max. |
| Return loss |
10 dB min. |
| Impedance |
75 Ω |
|
|
|
| Satellite wideband outputs |
|
|
|
|
| DTT outputs |
|
| Output ports | 1x, F-type |
| Frequency range |
FM/DAB/VHF 88 ~ 240 MHz UHF 470 ~ 790 MHz |
| Output power level | -33 dBm (75dBuV) |
| Output level variation | 4 dB max. |
| Return loss | 8 dB min. |
| Impedance | 75 Ω |
|
|
|
| Power supply |
|
| Power supply - via DC in | 10 - 20 V DC, 3.5/1.3 mm DC jack |
| Power consumption (all ports active) | 4.8 W max. |
| Power consumption (universal ports inactive) | 2.5 W max. |
| Earthing terminal |
Yes |
|
|
|
| Optical input level LED |
Green = OK, RED = High optical input power, Yellow=Low optical input power |
|
|
|
| Operating temperature |
-20°C ~ +50°C |
| Dimenssions |
149 x 89 x 26 mm |
| Weight |
360 g |
| Logistical info | |
| Packaging dimensions (W x D x H) | 16.4 x 10.2 x 3.1 cm |
| Packaging weight | 0.4 kg |
| Quantity per Carton | 20 pcs |
| Carton dimensions (W x D x H) | 33.9 x 32.2 x 12.2 cm |
| Carton weight | 8 kg |
| Quantity per pallet | 1200 pcs |
