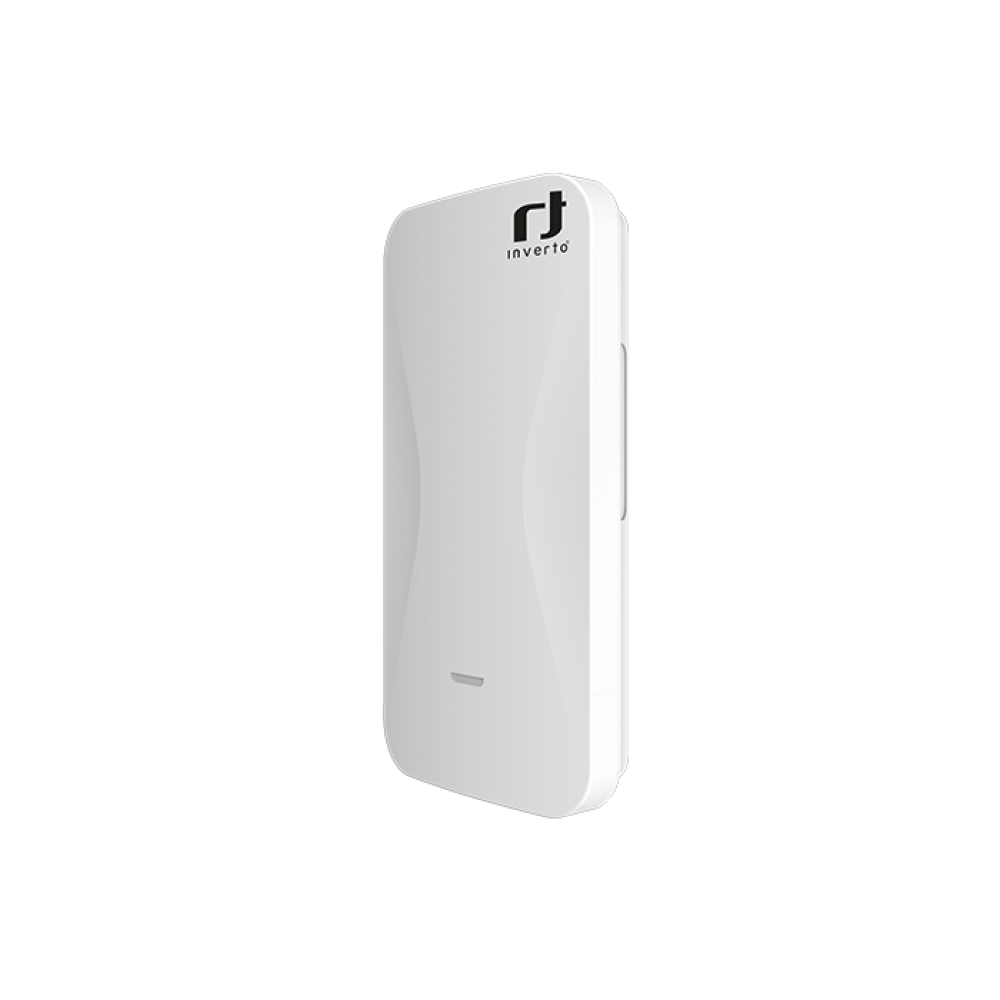

The Inverto OneNet™ TDMA3 CPE is the subscriber-side unit of the OneNet™ fixed wireless broadband system. Designed for simple outdoor installation at residential or business premises, it pairs with the OneNet™ Access Point to deliver reliable high-speed internet connectivity over distances of up to 5 km.
Equipped with a built-in 12 dBi dual-polarisation directional antenna and powered by the TDMA3 air protocol, the CPE ensures stable, low-latency connectivity in a compact weatherproof form factor. Its dual Ethernet ports make it easy to integrate with existing home routers or Inverto’s MoCA Access gateway, completing a seamless last-mile-plus-in-building broadband solution.
Equipped with a built-in 12 dBi dual-polarisation directional antenna and powered by the TDMA3 air protocol, the CPE ensures stable, low-latency connectivity in a compact weatherproof form factor. Its dual Ethernet ports make it easy to integrate with existing home routers or Inverto’s MoCA Access gateway, completing a seamless last-mile-plus-in-building broadband solution.
Main Features
- 12 dBi built-in dual-polarisation directional antenna supporting PtMP connections up to 5 km
- TDMA3 air protocol compatibility — Intelligent Dynamic Slot Allocation for low-latency, high-throughput service per subscriber
- IEEE 802.11a/n/ac (up to 867 Mbps) with 5/10/20/40/80 MHz channel widths including narrowband modes
- Dual Gigabit Ethernet ports (WAN + LAN); flexible power: 24V–48V passive PoE or DC 12–24V
- Dedicated TVS lightning protection and IP65-rated outdoor enclosure, –30°C to +55°C operating range
- VLAN, IPv4/IPv6, STP, Backup SSID, and remote management via HTTP(S) GUI, SSH, NMS, and cloud platform
| Horizontal Polarization | Vertical Polarization |
 |
 |
| System | |
|---|---|
| CPU | QCA9563 + QCA9882 + QCA8334 |
| Flash | SPI NOR 16 MB |
| DDR | DDR2 128 MB |
| Wi-Fi Standard | IEEE 802.11a/n/ac |
| Max Data Rate | 867 Mbps |
| Frequency Band | 5.150–5.850 GHz (extended: 4.9–6.1 GHz) |
| Channel Width | 5 / 10 / 20 / 40 / 80 MHz |
| Tx Power |
802.11a: 54M +23 ± 2 dBm, 6M +26 ± 2 dBm 802.11n HT20: MCS7 +22 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11n HT40: MCS7 +22 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT20: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT40: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT80: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm |
| RX Sensitivity |
802.11a: 54M +23 ± 2 dBm, 6M +26 ± 2 dBm 802.11n HT20: MCS7 +22 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11n HT40: MCS7 +22 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT20: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT40: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm 802.11ac VHT80: MCS9 +21 ± 2 dBm, MCS0 +26 ± 2 dBm |
| Air Protocol | TDMA3 — Intelligent Dynamic Slot Allocation |
| Working Mode | Access Point (Auto WDS / TDMA3), Station (WDS/TDMA3 / ARP NAT) |
| Antenna | |
| Type | Built-in dual-polarisation directional panel antenna |
| Gain | 12 dBi |
| Polarization | Vertical / Horizontal dual polarisation |
| Cross-Pol Isolation | 27 dB |
| Max VSWR | < 1.8 |
| Horizontal Beam Angle | 60° |
| Vertical Beam Angle | 30° |
| Working Frequency | 5180–5850 MHz |
| Networking | |
| WAN | 1 × 10/100/1000M; 24V–48V passive PoE input |
| LAN | 1 × 10/100/1000M |
| Network Mode | IPv4 / IPv6, Bridge, Router |
| VLAN | VLAN support, VLAN trunking, STP (Spanning Tree Protocol) |
| WAN Protocol | Static IP, DHCP client |
| Wireless QoS | TDMA 4-level queue priority, bandwidth limitation |
| Security | WPA/WPA2 Personal & Enterprise, WACL, client isolation |
| Services | DHCP, SNMP, NTP, ping watchdog, mDNS, CDP/LLDP, SSDP, GRE, PPPoE relay |
| Management | HTTP(S) GUI, SSH, SNMP read, NMS, Telnet, cloud platform, remote logging |
| Built-in Tools | Site survey, link test, antenna alignment, traceroute |
| Mechanical & Power | |
| Dimensions (H × W × D) | 168 × 86 × 42.5 mm |
| Weight | 0.28 kg |
| IP Rating |
IP65 |
| Power Supply | 24V–48V passive PoE; DC 12–24V |
| Power Consumption | < 10 W |
| Indicators | SYS, WAN, LAN, Signal ×5 |
| Reset |
Press 6 sec for factory reset |
| Environmental | |
| Operating Temperature | –30°C to +55°C |
| Storage Temperature |
–40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| ESD Protection | Air: ±8 kV, Contact: ±6 kV |
| Electrical Surge | Common Mode: 4 kV, Differential Mode: 2 kV |
| Lightning Protection | Dedicated TVS lightning protection devices |
| Logistical Information | |
| Dimensions (W x D x H) | 168 mm × 86 mm × 42.5 mm |
| Weight | 0.28 Kg |
| Package |
1 x CPE unit 1x 24V PoE adapter 1x Power cord 2x Cable ties |
